Gutter sizing for Orlando rainfall

Every complaint that starts "my gutters overflow and they are perfectly clean" ends in the same place. The run was sized for a climate that is not this one. It is worth understanding why, because it is the one gutter decision where paying more is frequently the cheaper long-run answer.

Sizing is two numbers, not one

Gutter capacity is a function of how much roof drains into a given run and how fast the water arrives. Nothing else in the specification matters as much. Colour, gauge, brand of coil, hanger style: all real considerations, none of them capacity.

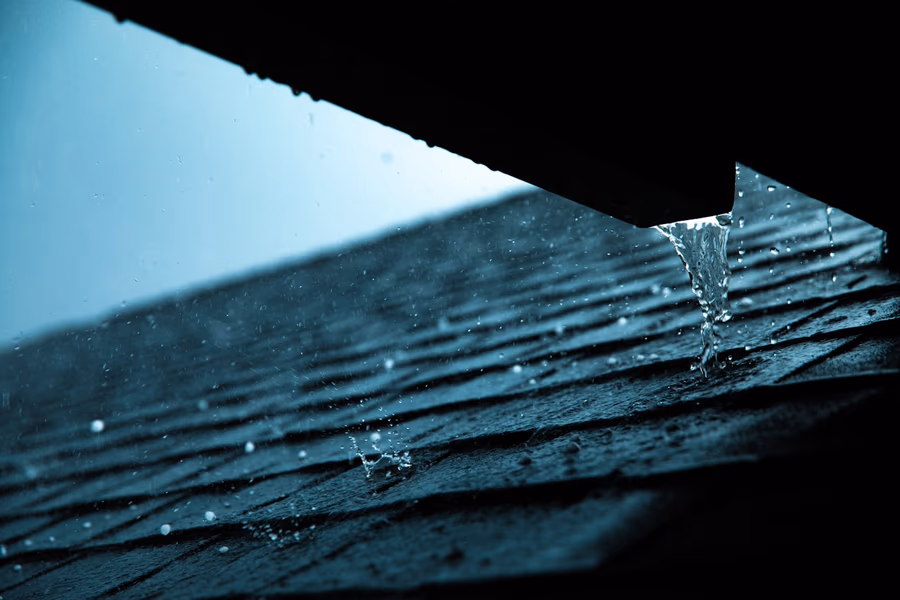

The first number, roof drainage area, is geometry. It is the plan area of roof feeding a particular length of gutter. Two houses with identical square footage can want completely different answers: a simple hip roof spreads its load evenly across four runs, while a gable with a long valley can funnel more than half the roof into a single twenty-foot section.

The second number, rainfall intensity, is climate. And this is where Orlando diverges from the national default sharply enough to change the answer.

What the sizing tables assume

The gutter and downspout sizing tables used across the sheet metal trade, principally those in SMACNA's Architectural Sheet Metal Manual and in Chapter 11 of the plumbing code, are published against a reference rainfall rate of one inch per hour. The table tells you the maximum roof area a given gutter size and slope can serve at that rate, and you scale it for your own local intensity.

That last step is the one that gets skipped. Not out of dishonesty, usually, but because a national one-inch baseline is close enough to reality across a lot of the country that people stop thinking about it. In Central Florida it is not close.

Orlando's actual numbers

NOAA Atlas 14 is the National Weather Service precipitation frequency atlas, and it gives point estimates for a specific latitude and longitude. Here is downtown Orlando, partial duration series, in inches of depth:

• One hour, 2-year return period: 2.14 inches
• One hour, 10-year return period: 2.91 inches
• One hour, 100-year return period: 3.93 inches
• Five minutes, 10-year return period: 0.73 inches
• Twenty-four hours, 10-year return period: 6.10 inches

Read the ten-year, one-hour figure again: 2.91 inches. Against a sizing table published at 1.00 inch per hour, that is very nearly a factor of three. A gutter sized to the raw table figure without adjustment is being asked to carry roughly three times the water it was chosen for, in the kind of storm that turns up most summers.

The five-minute figure is the one that explains why overflow is so sudden. Nought point seven three inches in five minutes is an enormous rate of arrival. The gutter does not gradually fill; it goes from empty to over the front edge in the first minutes of a downpour, and by the time you get to a window to look, the peak has often already passed.

How to work it through for your own roof

You do not need to run the code tables to get a useful answer. The four steps below get most homeowners to the right question, which is what matters when a contractor is standing in the driveway.

1. Split the roof into planes and match each to a run. Stand back from each elevation and work out what drains where. The runs to worry about are the ones catching multiple planes or the bottom of a valley.
2. Estimate each plane as plan area, not sloped area. Sizing works from horizontal projected area, which is roughly the footprint underneath the roof section. Steep pitches get a correction upward, because a steep roof both catches wind-driven rain across a larger effective face and delivers it faster.
3. Remember the local intensity multiplier. Whatever area figure a standard table gives, the usable area in Orlando is a fraction of it. That is the entire reason 6-inch is common here on rooflines that would be comfortable on 5-inch in a milder climate.
4. Set trough size and outlet count together. These solve different halves of the problem. Trough size sets how much the run can hold at any moment. Outlet count and downspout size set how fast it empties. A generous trough with one small outlet at the far end still overflows.

The long-run problem

This is the failure people find least intuitive. Water entering a gutter forty feet from the outlet has to travel forty feet in a shallow channel with almost no fall. As it travels it builds depth. On a long run carrying a serious volume, the water at the far end reaches the top of the trough and spills over the front edge before it ever gets near the downspout.

The fix is another outlet, not a bigger gutter. Splitting a long run so water travels half the distance is frequently a much larger improvement than upsizing the trough, and it costs a fraction as much. If you take one thing from this guide, take that: on a long elevation, ask about outlet count before asking about gutter size.

Downspout size

The step from 2x3 to 3x4 roughly doubles the cross-sectional area of the pipe. That is a large capacity gain, and it comes with a second benefit that matters under an oak canopy: debris which bridges across a 2x3 outlet and blocks it will usually pass through a 3x4.

On 6-inch trough, 3x4 is the standard pairing, and pairing 6-inch trough with 2x3 downspouts largely wastes the upgrade. On a big Orlando roof plane in a summer storm, the downspout is very often the actual bottleneck rather than the gutter itself.

Where half-round changes the answer

A semicircular half-round trough holds noticeably less than the near-rectangular K-style section at the same nominal width. Six-inch half-round is not a swap for six-inch K-style. Where half-round is chosen for appearance, on a historic-district house or a period elevation, the sizing needs to account for the profile, usually by going a size up, adding an outlet, or both.

When 5-inch is fine

This guide is not an argument that every Orlando house needs 6-inch. Plenty do not. Short porch runs, small single-plane sections, simple low-pitch hip roofs spreading their load across four elevations, garages and outbuildings: all of these are comfortable on 5-inch with 2x3 downspouts, and specifying 6-inch on them is spending money for nothing.

The point is that the question deserves asking per run rather than being answered once for the whole house. A well-specified job is frequently mixed: 6-inch on the two elevations carrying the big planes, 5-inch on the porch.

Reading a quote against this

A quote that specifies 6-inch trough and 3x4 downspouts on the elevations with the largest roof planes, and places an outlet where a valley lands, is a quote where someone did the sizing. A quote that specifies the same thing everywhere is a quote where someone did not. Neither is dishonest, but the first one is worth more, and it will frequently be the more expensive of the two.
